Is Extrusion a Batch Process?

Extrusion can be both a continuous and batch process, depending on the specific manufacturing requirements and equipment used.

Basics of Extrusion

Extrusion is a process used to create objects of a fixed cross-sectional profile. Material is pushed or drawn through a die of the desired cross-section, providing various shapes based on the die used. This technique is applied in various industries, such as food, plastics, and metals.

Types of Extrusion Processes

• Hot Extrusion: Primarily used for metals like aluminum, copper, and steel. It requires high temperatures, generally between 650 to 1200 degrees Celsius, depending on the material. This process offers improved material ductility but can have a higher operating cost due to the energy consumption.
• Cold Extrusion: Performed at or near room temperature, it offers advantages in terms of better surface finish and faster production speeds. Metals like tin, lead, and aluminum or their alloys are often cold extruded. The main advantage here is the reduced energy costs, as the process requires temperatures of only around 20 to 25 degrees Celsius.
• Warm Extrusion: As the name suggests, this is done at temperatures between hot and cold extrusion. It is often applied to steel and titanium. This method is a balance between the two, providing a decent surface finish at a moderate temperature range of 200 to 400 degrees Celsius.
• Plastic Extrusion: A widely used process where plastic material, in pellet form, is melted and formed into a continuous profile. Commonly used materials include Polyvinyl Chloride (PVC), Polyethylene (PE), and Polypropylene (PP). This process operates at temperatures ranging from 150 to 250 degrees Celsius. One of its advantages is the ability to produce long lengths of product, especially in the creation of tubing or pipes.

Materials Commonly Used in Extrusion

• Metals: Metals such as aluminum, copper, brass, and steel are often used in extrusion. Aluminum, for instance, is popular due to its lightweight properties and versatility. The average price of aluminum per ton is approximately $2,200, with an average lifespan of products ranging from 30-40 years, depending on the application.
• Plastics: Plastics dominate the extrusion industry, especially in non-industrial products. Materials like Polyvinyl Chloride (PVC), Polyethylene (PE), and Polypropylene (PP) are popular. The average cost of PVC is around $1,000 per ton, with product lifespans ranging from 20-30 years. The quality of the end product is influenced by the purity and grade of the plastic used.
• Ceramics: Extrusion isn’t limited to metals and plastics. Ceramics are also extruded, especially in the production of structural clay products. The average cost of basic ceramic materials is about $500 per ton, with product lifespans varying widely based on the application, ranging from 50 to 100 years.



Batch Process Explained

A batch process involves producing a limited amount of products in a group or set, often with distinct start and end points. It contrasts with continuous processes where items are produced non-stop in a sequential manner. Batch processing can be seen as a flexible alternative, allowing manufacturers to switch between different product types easily. However, this flexibility can sometimes come at the cost of efficiency, especially in industries where large-scale production is vital.

Characteristics of a Batch Process

• Defined Start and End: Unlike continuous processes, batch processes have clear starting and ending points. This means once a batch is completed, machinery and equipment might remain idle until the next batch begins.
• Flexibility: Batch processes are adaptable. Manufacturers can switch between different products without significant downtimes. This adaptability makes it a favorite in industries where customization or variety is essential.
• Volume and Scale: Typically, batch processes might not achieve the scale economies that continuous processes can. However, this is balanced by the ability to produce a wider range of products.
• Cost Implications: Due to the start-and-stop nature, batch processes can have higher per-unit costs than continuous processes. For instance, if producing a batch of 100 units costs $5,000, the per-unit cost is $50. But in continuous processes, the vast scale might reduce this to $40 or even lower.
• Time Constraints: Batch processing can be time-bound. For example, a batch might need to be completed within 48 hours to ensure product quality or meet a delivery deadline.

Examples of Industries Using Batch Processes

• Bakery: Baking is often done in batches. A bakery might produce 200 loaves of bread in one batch, which takes about 3 hours from mixing to baking, costing approximately $400 for the entire batch.
• Pharmaceuticals: Many medicines, especially specialized ones, are produced in batches. A batch of a specific drug might involve producing 10,000 pills at a cost of $2,000, ensuring quality and consistency across the batch.
• Craft Breweries: Many craft breweries produce beer in batches. A single batch might produce 500 liters of beer, with an approximate brewing time of 7 days and a cost of about $1,200.
• Specialized Electronics: Industries producing customized electronics or limited edition products often utilize batch processes. For instance, a limited-edition smartwatch might be produced in batches of 1,000 units, each costing around $250 to manufacture.

Continuous Process in Extrusion

Continuous extrusion is a production method where material continuously moves through the extrusion apparatus without interruption. This method is prominent in various industries, particularly where large-scale production is essential. Unlike batch processes, which have distinct start and end points, continuous extrusion operates non-stop, pushing material through the die to create products with a fixed cross-sectional profile.

Advantages of Continuous Extrusion

• Higher Efficiency: One of the main benefits of continuous extrusion is its efficiency. With machinery operating non-stop, production rates can reach impressive numbers. For example, a continuous extruder might produce up to 5,000 meters of plastic tubing every hour, translating to a faster time-to-market.
• Reduced Costs: With continuous operations, the per-unit production cost often decreases. If a continuous extrusion setup costs $50,000 to operate for 10 hours, producing 50,000 units in that time, the cost per unit comes down to $1. In contrast, batch processes might have higher operational downtimes, elevating the per-unit costs.
• Consistent Quality: Continuous extrusion often provides more consistent product quality. With machines calibrated for consistent operations, variations in product dimensions, such as thickness or diameter, are minimal.
• Scalability: Continuous processes are easily scalable. If market demand rises, it’s simpler to extend the operation hours than to set up additional batch processes.
• Energy Efficiency: Operating machinery at a steady rate can be more energy-efficient than the start-and-stop nature of batch processes. For instance, a continuous extrusion machine operating at 200 kW might consume less energy per product than a batch process machine peaking at 250 kW.

Limitations and Challenges

• Flexibility Issues: Continuous extrusion might not be as flexible as batch processes. Switching between different product types or designs might require longer downtimes and recalibrations.
• Higher Initial Investment: Setting up a continuous extrusion line can be capital intensive. A state-of-the-art continuous extruder might cost upwards of $500,000, while a batch extruder might be priced at $200,000.
• Maintenance Challenges: Since the machinery operates continuously, wear and tear can be a concern. Regular maintenance checks, perhaps every 500 hours of operation, become essential to ensure the machinery’s longevity and optimal performance.
• Dependency on Steady Demand: For continuous extrusion to be cost-effective, there needs to be a steady market demand. Unsold inventory can lead to storage costs and potential losses if products become obsolete.

Comparison Between Batch and Continuous Processes in Extrusion

Both batch and continuous processes are integral to the extrusion industry. However, they present unique advantages, challenges, and implications, making them suitable for different scenarios. Let’s delve into a detailed comparison between the two.

Efficiency and Production Rate

• Batch Process: Typically, batch processes have a defined start and end point, which means there can be downtime between batches. For instance, if an extruder produces 2,000 units in a 3-hour batch, there might be an hour of downtime before the next batch begins, leading to potential inefficiencies.
• Continuous Process: Continuous extrusion, on the other hand, is a non-stop process. This continuous nature often translates to higher efficiency. For example, a machine might produce 10,000 units in 10 hours without interruption, showcasing a higher production rate than batch processes.

Quality and Consistency

• Batch Process: Batch processes can sometimes lead to slight variations between different batches, especially if there’s a significant time gap or if equipment settings are changed. This might result in varying product thickness or color between batches.
• Continuous Process: Continuous extrusion usually offers more consistent product quality. With machinery calibrated for consistent operation, the likelihood of variations, such as thickness or color differences, is minimal.

Cost Implications

• Batch Process: Due to the start-and-stop nature, batch processes might have higher per-unit costs. For example, producing a batch of 2,000 units might cost $5,000, resulting in a $2.50 per unit cost. The cost of starting and stopping machinery also contributes to these numbers.
• Continuous Process: With machines running non-stop, the per-unit production cost often decreases. If the operational cost for 10 hours is $8,000, producing 10,000 units, the cost comes down to $0.80 per unit.

Flexibility and Changeover

• Batch Process: One significant advantage of batch processes is flexibility. Switching between different product types or designs is relatively straightforward, making it a favorite in industries where customization or variety is key. A changeover might take as little as 30 minutes to a couple of hours, depending on the complexity.
• Continuous Process: Changeovers in continuous extrusion can be more challenging. Switching between different products might require longer downtimes and recalibrations. However, for products that don’t require frequent changeovers, the continuous process remains unmatched in efficiency and scale.

Case Studies

Extrusion processes are versatile, finding applications in diverse industries. Let’s explore two specific sectors: the plastics and food industries, and how extrusion has influenced their operations and products.

Extrusion in the Plastics Industry

Background: The plastics industry has been a significant benefactor of extrusion techniques. This process enables manufacturers to produce a vast array of products, from simple plastic sheets to complex profiles for construction, automotive, and more.

Applications:

• Pipes and Tubes: One of the most common applications. Pipes for plumbing, electrical conduits, and even medical tubing are frequently produced using extrusion. For example, a typical PVC pipe manufacturing unit can produce around 10,000 meters of piping daily, with costs as low as $0.05 per meter, depending on the diameter and specifications.
• Sheets and Films: Plastic sheets for packaging, protective covers, and more are often extruded. A continuous extrusion process might churn out films at speeds of up to 800 meters per minute, ensuring high production rates.

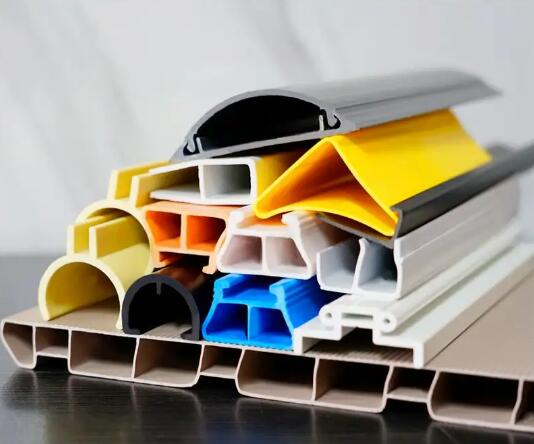

• Profiles: Complex profiles, like window frames or construction moldings, are also extruded, allowing for intricate designs with consistent cross-sections.

Challenges and Solutions:

• Material Variations: Different plastics (like PE, PVC, or PET) have unique melting points and characteristics. Adjusting machine settings to cater to these differences is crucial.
• Waste Reduction: With increasing environmental concerns, many manufacturers are looking at recycling and reducing waste. Modern extruders often incorporate recycling systems to reintroduce scrap into the production line.

Extrusion in the Food Industry

Background: Food extrusion is a popular method to process and shape a variety of food products. It involves forcing a mixture through a die to get the desired shape, then cooking or setting the product as it emerges.

Applications:

• Breakfast Cereals: Many cereals are extruded, with mixtures of grains pushed through dies to create distinctive shapes and then toasted or puffed to finish.
• Pasta: Various pasta shapes, from macaroni to penne, are formed using extrusion. A medium-scale pasta production unit might produce up to 5 tons of pasta daily.
• Snack Foods: Items like cheese puffs, corn chips, and certain protein bars are all products of extrusion.
• Pet Foods: Many dry pet foods are created using extrusion, allowing for a mix of ingredients to be shaped and cooked simultaneously.

Challenges and Solutions:

• Consistency: Ensuring a consistent mix of ingredients is crucial for quality. Manufacturers employ mixers and agitators to ensure even distribution before extrusion.
• Temperature Control: Given that many food products are cooked during extrusion, precise temperature control is vital. Modern extruders have advanced sensors to monitor and adjust heat levels for optimal cooking.
